PRACTICAL GUIDE
![bloc-note](https://www.lsbox.fr/wp-content/uploads/2017/07/bloc-note-e1551971473547.png)
WHICH PRODUCT TO CHOOSE ?
- You are replacing existing generators ?
- You don’t know which model to choose ?
- You need an overview of our range ?
LsBox Pro
![](https://www.lsbox.fr/wp-content/uploads/2019/03/15-145FT2-300x289.png)
High power 45W illuminator
3940lm (4000K IRC 90),
3320lm (3000K IRC 98).
Light intensity adjustable from 0 to 100%, by potentiometer or by remote contrôle with 0-10V signal.

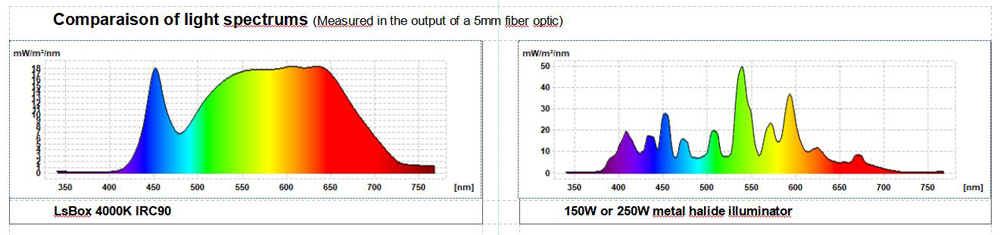

A suitable optic ensures optimum coupling between the LED source and the optical fiber. The efficiency of this illuminator is very much higher than that of a metal halide illuminator.
It is perfect for retrofitting all types of halogen or metal halide illuminators, with a much higher light quality for the latter.
Available color temperatures :
3000K IRC98.
2700K, 3000K, 3500K, 4000K IRC90.
Special color temperature, special CRI, on request.
![](https://www.lsbox.fr/wp-content/uploads/2019/04/15-135FT-300x288.png)
Universal 30W illuminator
3720lm (5700K IRC80),
3200lm (4000K IRC90),
2740lm (3000K IRC98).
Light intensity adjustable from 0 to 100%, by potentiometer or by remote contrôle with 0-10V signal.
Ideal for retrofitting all types of halogen light illuminators, whatever the power, as well as metal halide illuminators with maximum power 150W.
Available color temperatures :
3000K IRC98.
2700K, 3000K, 3500K, 4000K IRC90.
5700K IRC80.
Special color temperature, special CRI, on request.
![](https://www.lsbox.fr/wp-content/uploads/2017/07/15-121FT3-300x293.png)
20W compact illuminator
2780lm (5700K IRC80),
2390lm (4000K IRC90),
2050lm (3000K IRC98).
Light intensity adjustable from 0 to 100%, by potentiometer or by remote contrôle with 0-10V signal.
For retrofitting all types of halogen light illuminators up to 100W.
Available color temperatures :
3000K IRC98.
2700K, 3000K, 3500K, 4000K IRC90.
5000K IRC70.
Special color temperature, special CRI, on request.
LsBox
![](https://www.lsbox.fr/wp-content/uploads/2019/04/15-160_2-300x236.png)
RGBW 60W Illuminator
RGB+W (5500K) Led
- Stand alone mode.
- DMX signal.
- RF (remote control not included).
![](https://www.lsbox.fr/wp-content/uploads/2019/04/15-131_4-300x235.png)
RGBW 30W Illuminator
RGB+W (5500K) Led
- Stand alone mode.
- DMX signal.
- RF (remote control not included).
![](https://www.lsbox.fr/wp-content/uploads/2019/04/16-131_3-300x253.png)
30W illuminator with effect wheel
- Soft color changing.
- Twinkle effect.
Available color temperatures :
3000K, 4000K IRC90.
Special color temperature, special CRI, on request.
![](https://www.lsbox.fr/wp-content/uploads/2019/04/15-110_2-300x220.jpg)
Mini 10W illuminator
1400lm (5000K IRC70),
1094lm (4000K IRC90),
947lm (3000K IRC97).
Light intensity adjustable from 0 to 100%, with leading edge or trailing edge dimmer.
For star ceilling, lighting model, precision lighting.
Available color temperatures :
3000K IRC97.
2700K, 3000K, 3500K, 4000K IRC90.
5000K IRC70.
Special color temperature, special CRI, on request.
![Montage-atelier-petit](https://www.lsbox.fr/wp-content/uploads/2018/07/Montage-atelier-petit.jpg)
